Pressure Homogeniser Photographs

Pressure Homogeniser Description

The homogeniser consists basically of a motor-driven gearbox incorporating a cam-shaft driving the pump ram. This ram operates in a stainless steel cylinder block and any leakage is sealed by hygienic self-sealing packaging. The cylinder head carries an inlet valve, pressure relief valve, air release valve and homogenising valve, which also acts as the outlet valve, and is, adjustable

This homogeniser is designed to give an output of 10 gallons per hour at operating pressures up to a maximum of 1000 lbs per square inch

Return to Index Page
		Pressure Homogeniser Showing front view

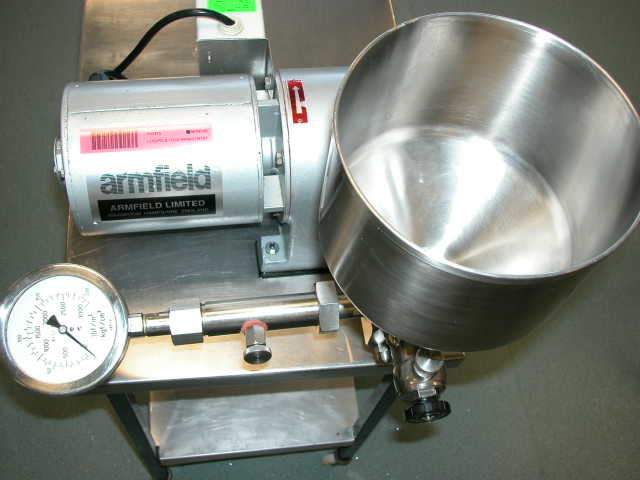

		Pressure Homogeniser Showing a view from the top Also showing pressure gauge
Pressure Homogeniser Description The homogeniser consists basically of a motor-driven gearbox incorporating a cam-shaft driving the pump ram. This ram operates in a stainless steel cylinder block and any leakage is sealed by hygienic self-sealing packaging. The cylinder head carries an inlet valve, pressure relief valve, air release valve and homogenising valve, which also acts as the outlet valve, and is, adjustable This homogeniser is designed to give an output of 10 gallons per hour at operating pressures up to a maximum of 1000 lbs per square inch
